Understanding Knob & Tube Wiring: Hazards and Considerations

Knob and tube (K&T) wiring is an electrical system that was commonly used in homes from the 1880s until the 1940s. This older wiring method consists of insulated copper conductors that are run through porcelain knobs and tubes, designed to keep the wires separated and away from combustible materials. While K&T wiring was a popular choice in its time, today it raises some safety concerns that homeowners should be aware of.

What is Knob & Tube Wiring?

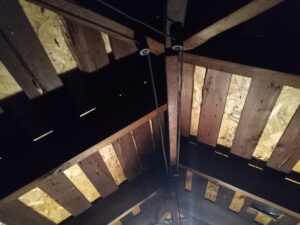

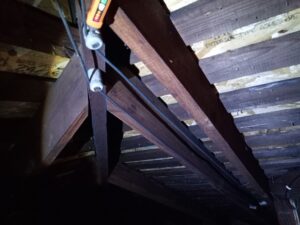

K&T wiring features individual hot and neutral wires, which are not enclosed in a protective sheath as modern wiring is. Instead, the wires are supported by porcelain knobs and pass through ceramic tubes when they need to go through beams or walls. While this system allowed for effective heat dissipation due to the separation of wires, it has significant drawbacks in terms of safety and compliance with current electrical standards.

Why is Knob & Tube Wiring Hazardous?

While K&T wiring is not inherently dangerous, it poses several risks, primarily due to its age and potential for deterioration:

1. Deterioration: Over time, the rubber insulation used in K&T wiring can deteriorate, especially around light fixtures where excessive heat is generated. This degradation can expose live wires, increasing the risk of electrical shock and fire.
2. Concealed Condition: Much of the K&T wiring in older homes is hidden behind walls and ceilings, making it difficult to assess its condition. Without a thorough inspection, homeowners may be unaware of potential hazards.
3. Improper Modifications: K&T systems are often subject to unprofessional modifications by homeowners attempting to update their electrical systems. These alterations can create unsafe conditions, such as loose connections or overloaded circuits.

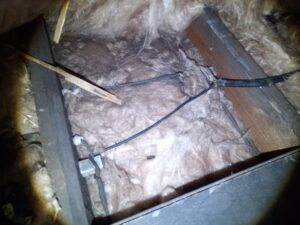

4. Insulation Issues: Modern building standards prohibit the installation of insulation over K&T wiring. Insulating these wires can trap heat, leading to overheating and potential fires. K&T relies on free air circulation for heat dissipation, so covering it can create safety hazards.
5. Insurance Challenges: Many insurance companies view homes with K&T wiring as high-risk. In some areas, obtaining insurance may be difficult if K&T is present, and policies may be more expensive or require thorough inspections by licensed electricians.

A Brief History of Knob and Tube Wiring

Knob and tube wiring emerged in the late 19th century as one of the first standardized electrical wiring methods. It gained popularity during an era when electricity was becoming more accessible to the general public, transforming how homes were powered. The system was relatively simple to install and cost-effective compared to other methods at the time, such as conduit wiring.

K&T wiring was widely used in residential buildings until the mid-20th century when newer wiring standards began to emerge. Advances in electrical technology, such as the introduction of the grounding wire and the use of insulated cables, made K&T less desirable. By the 1940s, it began to be phased out in favor of safer, more efficient wiring systems. Today, most K&T installations at least 75+ years old, raising concerns about their safety and reliability in modern homes.

Common Misunderstandings About Knob and Tube Wiring

Despite the concerns surrounding knob and tube wiring, several misconceptions exist:

1. Inherent Danger: One common misunderstanding is that K&T wiring is inherently dangerous. While it does present risks, particularly due to age and potential deterioration, it is not intrinsically a fire hazard if maintained properly. The safety of K&T largely depends on its condition and how it has been modified over the years.
2. Comparison to Aluminum Wiring: K&T wiring is often compared to aluminum wiring, which has been proven to have a significantly higher risk of fire hazards. Unlike aluminum, K&T wire is copper and, when in good condition, can function safely. The critical issue lies in the age and maintenance of the wiring.
3. Myth of Insulation Safety: Some homeowners believe that insulating over K&T wiring is acceptable. However, this is a safety hazard; insulation can trap heat and lead to overheating. The National Electrical Code explicitly prohibits this practice, emphasizing that K&T relies on airflow for heat dissipation.

Professional Recommendations

Because of the potential hazards associated with K&T wiring, it’s essential for homeowners to seek evaluation by a licensed electrician. Many electricians prefer not to repair K&T wiring due to liability concerns and will recommend complete replacement or removal instead. This approach not only enhances safety but also ensures compliance with modern electrical standards.

In conclusion, while knob and tube wiring served its purpose in the past, it is no longer a reliable option for today’s electrical needs. If your home has K&T wiring, consider having it evaluated by a professional to discuss the best course of action for ensuring your home’s electrical safety. Upgrading to modern wiring will not only improve safety but also enhance the overall value and insurability of your home.
